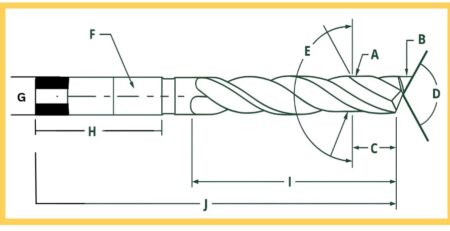

Drill bits have several characteristics:



The spiral (or rate of twist) in the drill bit controls the rate of chip removal. A fast spiral (high twist rate or "compact flute") drill bit is used in high feed rate applications under low spindle speeds, where removal of a large volume of chips is required. Low spiral (low twist rate or "elongated flute") drill bits are used in cutting applications where high cutting speeds are traditionally used, and where the material has a tendency to gall on the bit or otherwise clog the hole, such as aluminum or copper.


The point angle, or the angle formed at the tip of the bit, is determined by the material the bit will be operating in. Harder materials require a larger point angle, and softer materials require a sharper angle. The correct point angle for the hardness of the material influences wandering, chatter, hole shape, and wear rate.

The lip angle determines the amount of support provided to the cutting edge. A greater lip angle will cause the bit to cut more aggressively under the same amount of point pressure as a bit with a smaller lip angle. Both conditions can cause binding, wear, and eventual catastrophic failure of the tool. The proper amount of lip clearance is determined by the point angle. A very acute point angle has more web surface area presented to the work at any one time, requiring an aggressive lip angle, where a flat bit is extremely sensitive to small changes in lip angle due to the small surface area supporting the cutting edges.

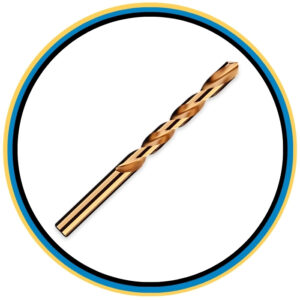

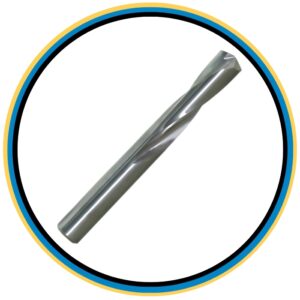

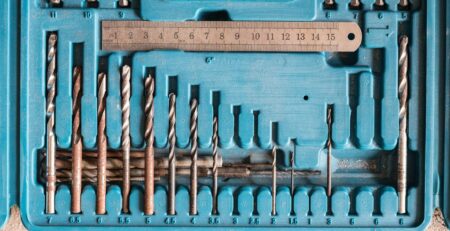

The length of a bit determines how deep a hole can be drilled, and also determines the stiffness of the bit and accuracy of the resultant hole. While longer bits can drill deeper holes, they are more flexible meaning that the holes they drill may have an inaccurate location or wander from the intended axis. Twist drill bits are available in standard lengths, referred to as Stub-length or Screw-Machine-length (short), the extremely common Jobber-length (medium), and Taper-length or Long-Series (long).

Most drill bits for consumer use have straight shanks. For heavy duty drilling in industry, bits with tapered shanks are sometimes used. Other types shanks used include hex-shaped, and various proprietary quick release systems.

The diameter-to-length ratio of the drill bit is usually between 1:1 and 1:10. Much higher ratios are possible (e.g., "aircraft-length" twist bits, pressured-oil gun drill bits, etc.), but the higher the ratio, the greater the technical challenge of producing good work.

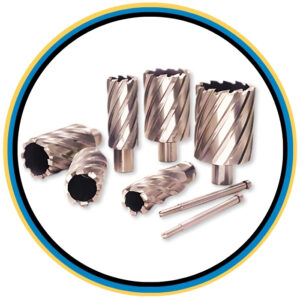

Broach cutting using Drill Bits World cutters means you can produce large diameter holes efficiently and quickly with less energy faster penetration and less thrust. Rather than drilling out the metal with a solid drill Drill Bits World cutters remove only the periphery of the hole ejecting a slug at the end of the cut. Blitz Bits Brad Point Drill Bits

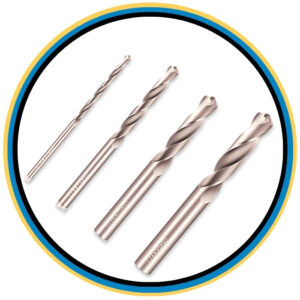

Tungsten Carbide Tipped Hole Cutters Solid carbide drills have the ability to retain hardness and a sharp edge at high temperature. Their excellent abrasion-resistant qualities make them advantageous for use in drilling abrasive materials such as cast iron non-ferrous alloys high silicon aluminum hard rubber and plexiglass. Carbide drills are run at higher speeds than standard High Speed Steel drills. They offer the advantage of extreme rigidity for greater drilling accuracy. Cobalt Reduced Shank Drill Bits
Drill Bit Sets Manufactured to NAS 907 Type C specifications, 135 degree split point, surface treated with jobber flute lengths for drilling holes in hard to reach places. Heavy duty construction for portable or machine drilling in high tensile strength alloy steels. Manufactured from a premium grade of m-7N molybdenum high speed steel. The Nitro Heavy-Duty Construction Reamers have a Ferritic Nitro Carburizing surface treatment which gives a hard protective layer to the reamer. This increases hardness (Rc 75-80) without increasing brittleness which is measurably harder than high speed steel. Body and clearance are gold and black surface treated for maximum lubricity.
Nitro High Spiral Reamers Taper Shank Adapters Taper Shank Drill Bits

Materials

Many different materials are used for or on drill bits, depending on the required application. Many hard materials, such as carbides, are much more brittle than steel, and are far more subject to breaking, particularly if the drill is not held at a very constant angle to the workpiece; e.g., when hand-held.

Steels

Soft low carbon steel bits are inexpensive, but do not hold an edge well and require frequent sharpening. They are used only for drilling wood; even working with hardwoods rather than softwoods can noticeably shorten their lifespan.

Bits made from high carbon steel are more durable than low-carbon steel bits due to the properties conferred by hardening and tempering the material. If they are overheated (e.g., by frictional heating while drilling) they lose their temper, resulting in a soft cutting edge. These bits can be used on wood or metal.

High speed steel (HSS) is a form of tool steel; HSS bits are hard, and much more resistant to heat than high carbon steel. They can be used to drill metal, hardwood, and most other materials at greater cutting speeds than carbon steel bits, and have largely replaced carbon steels.

Cobalt steel alloys are variations on high speed steel which contain more cobalt. They hold their hardness at much higher temperatures, and are used to drill stainless steel and other hard materials. The main disadvantage of cobalt steels is that they are more brittle than standard HSS.



Others

Tungsten carbide and other carbides are extremely hard, and can drill virtually all materials while holding an edge longer than other bits. The material is expensive and much more brittle than steels; consequently they are mainly used for drill bit tips, small pieces of hard material fixed or brazed onto the tip of a bit made of less hard metal. However, it is becoming common in job shops to use solid carbide bits. In very small sizes it is difficult to fit carbide tips; in some industries, most notably PCB manufacturing, requiring many holes with diameters less than 1 mm, solid carbide bits are used.

Polycrystalline diamond (PCD) is among the hardest of all tool materials and is therefore extremely resistant to wear. It consists of a layer of diamond particles, typically about 0.5 mm (0.020 in) thick, bonded as a sintered mass to a tungsten carbide support. Bits are fabricated using this material by either brazing small segments to the tip of the tool to form the cutting edges, or by sintering PCD into a vein in the tungsten carbide "nib". The nib can later be brazed to a carbide shaft; it can then be ground to complex geometries that would otherwise cause braze failure in the smaller "segments". PCD bits are typically used in the automotive, aerospace, and other industries to drill abrasive aluminum alloys, carbon fiber reinforced plastics, and other abrasive materials, and in applications where machine downtime to replace or sharpen worn bits is exceptionally costly. It should be noted that PCD is not used on ferrous metals due to excess wear resulting from a reaction between the carbon in the PCD and the iron in the metal.

Types of Drill Bits

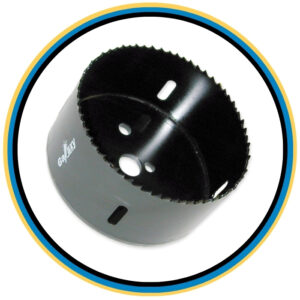

Tungsten Carbide Tipped Hole Cutters

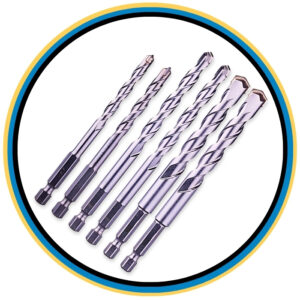

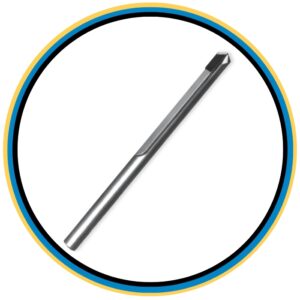

Carbide Tipped Drills
Carbide Drills run at Higher Speeds than Standard High Speed Steel Drills. They Offer the advantage of extreme rigidity for greater drilling accuracy.

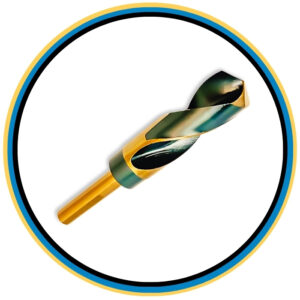

Cobalt Reduced Shank Drills

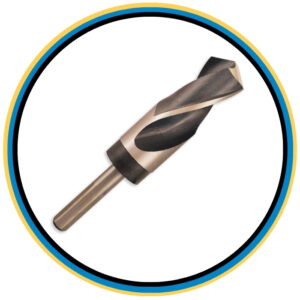

Silver and Deming, and High Split Pointed Steel

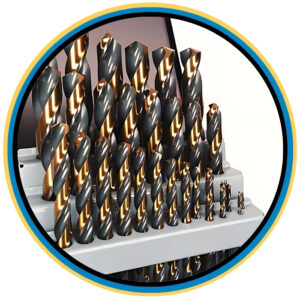

Drill Bit Sets
Carbide Tipped, Jobber Blitz Bits, Metric Jobber. Reduced Shank and Solid Carbide Sets.

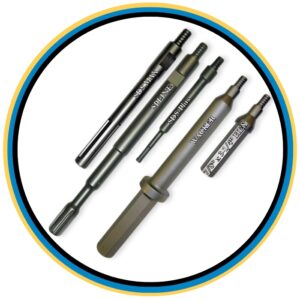

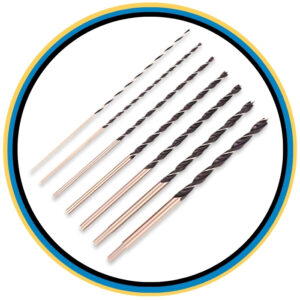

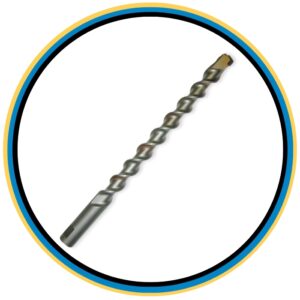

Extra Length Aircraft Extension Drills
Because of the inaccessibility or the extreme depth of a hole it is found that even long series drills are not long enough. The drilling of such holes generally requires the use of an Extra Length Drill. Popular Item!!!

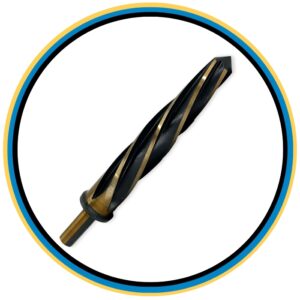

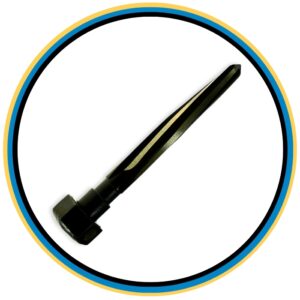

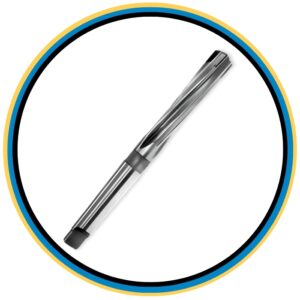

Hex Head Construction Reamers
Manufactured from a premium grade of m-7N molybdenum high speed steel. The Nitro Heavy-Duty Construction Reamers have a Ferritic Nitro Carburizing surface treatment which gives a hard protective layer to the reamer.

Nitro High Speed Sprial Reamers
High Speed Sprial 1/2" Shank Nitro Construction Reamers

Taper Shank Adaptors

Taper Shank Drill Bits
High Speed Steel, Black Oxide



Coatings

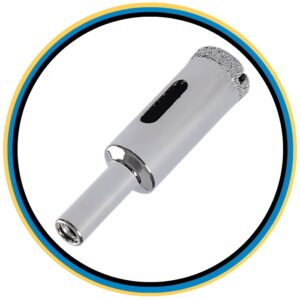

Diamond coated 2mm bits, used for drilling materials such as glass.

Black oxide is an inexpensive black coating. A black oxide coating provides heat resistance and lubricity, as well as corrosion resistance. Coating increases the life of high-speed steel bits.

Titanium nitride (TiN) is a very hard ceramic material that can be used to coat a high-speed steel bit (usually a twist bit), extending the cutting life by three or more times. However, when the bit is sharpened the new edge will not have the benefits of the coating.

Titanium aluminum nitride (TiAlN) is a similar coating that can extend tool life five or more times.

Titanium carbon nitride
(TiCN) is another coating also superior to TiN.

Diamond powder is used as an abrasive, most often for cutting tile, stone, and other very hard materials. Large amounts of heat are generated by friction, and diamond coated bits often have to be water cooled to prevent damage to the bit or the workpiece.
